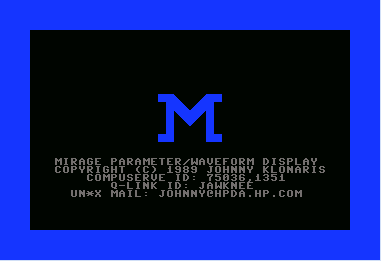

Initial screen display

The M program has several displays. Due to limitations of my C64 X-windows emulator, the main waveform display, which is in hi-res graphics mode, is not available for display here. That display shows one page of the Mirage's memory (256 samples) graphically, with a side bar that indicates the bank, page and sample, as well as the wavesample begin, end and loop begin and end.

The other displays are available:

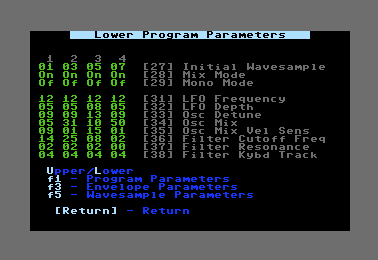

The program parameter display

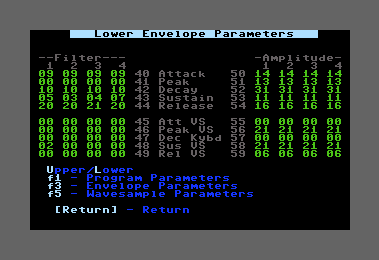

The envelope parameter display

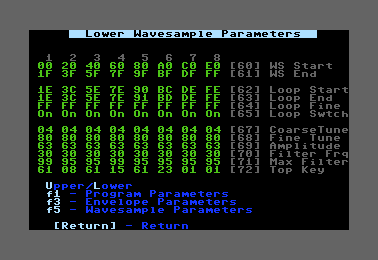

The wavesample parameter display

Page created by Johnny Klonaris, 5 Dec 95
